Product Description:

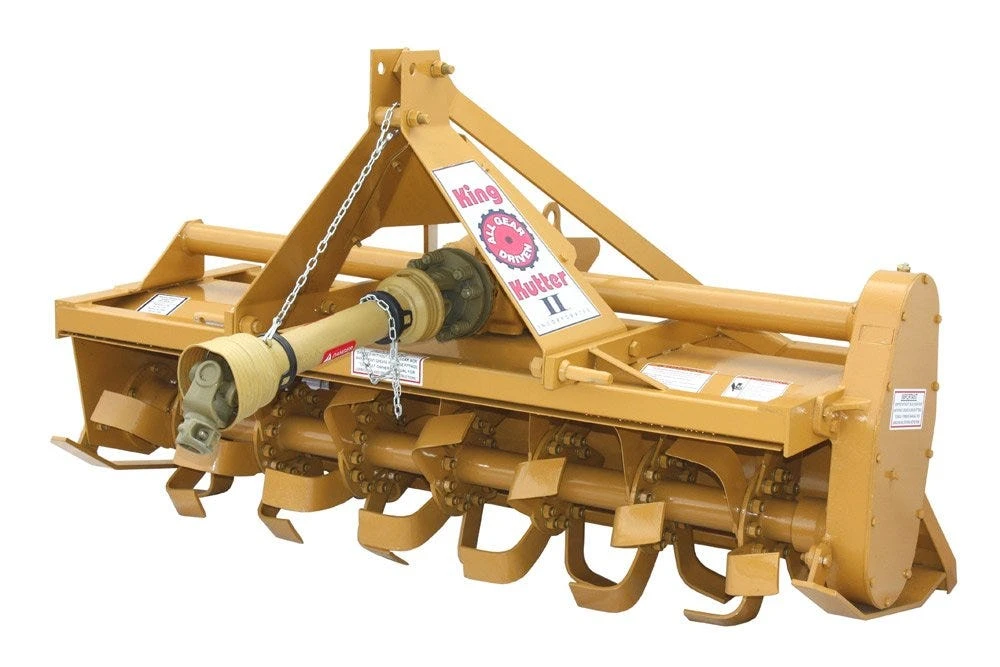

King Kutter’s 4′ GEAR DRIVEN ROTARY TILLER (TG-48) is designed to perform with its heavy duty gear drive and square tube frame. With 6 tines per flange, you get maximum soil mix for preparing planting beds, gardens, incorporating fertilizer, landscaping, or other jobs. This Category 1 tiller includes a PTO shaft with heavy duty slip clutch. Available in 4, 5, and 6 ft. models. The 4 ft. model is offset to eliminate tire tracks.
This model is ideal for tractors with 20-35 horse power.
Product Features:
- Gear Drive
- Heavy-Duty Frame
- Adjustable Tailgate
- Slip Clutch Drive Line Standard
- Six Tines per Flange
- Number of Tines: 36
Specifications:
| Model: | TG-48 |
| PTO Speed Required | 540 |
| Tractor HP Range | 20-35 HP |
| Approx. Weight | 569 lbs. |
| PERFORMANCE | |
| Working Width | 48″ |
| Max. Tilling Depth | 8″ |
| Rotor Shaft Speed (RPM) | 210@540 |
| Gearbox Protection | Slip Clutch |
| CONSTRUCTION | |
| Rotor Drive Type | Gear |
| No. of Flanges | 6 |
| No. of Tines per Flange | 6 |
| Hitch | Cat I |
| Input Drive Line Category | ASAE Cat. 4 |
| Tine Type | L shaped |
| Tine Spacing | 7.875″ |
