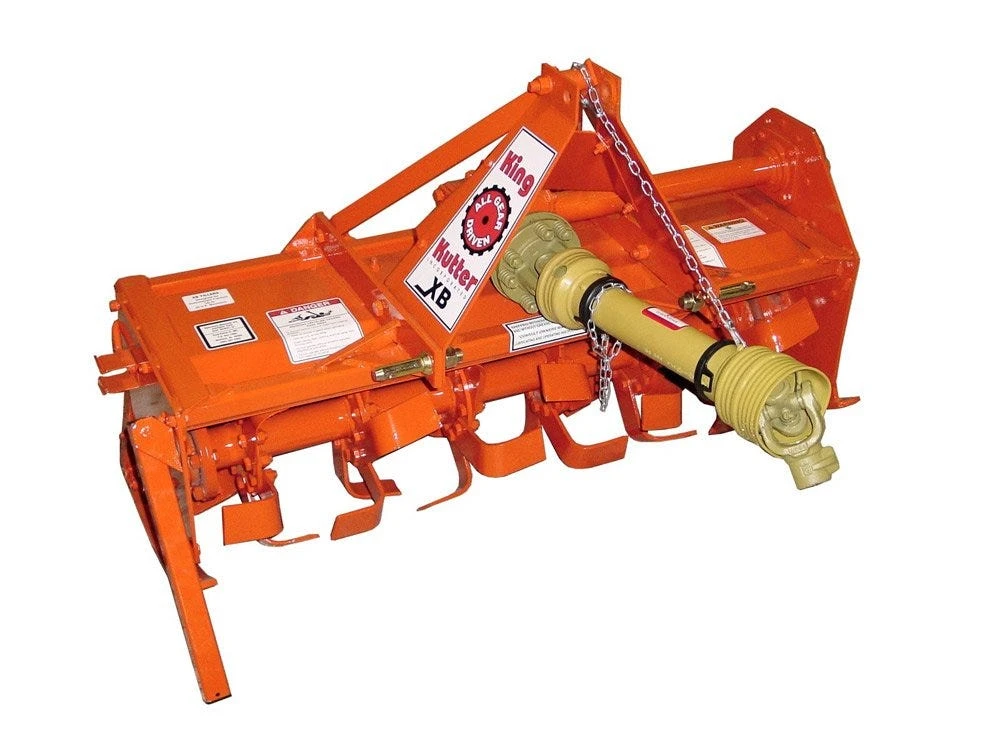

KING KUTTER’S GEAR DRIVEN XB-TILLER is a quality constructed tiller that is built to last. The adjustable skid shoes control the cutting depth while the rear shield controls the soil mix. Each tiller is equipped with a slip clutch to protect the cast iron gear driven center gear box and the gear driven side gear box. This unit has a 48″ cutting width and is designed for sub-compact tractors up to 25 H.P.
Product Features:
- Limited CAT. 1 Hitch
- Slip Clutch Protected Drive Line
- 6 Tines Per Flange
- Adjustable Skid Shoes
- Cast Iron Center Gearbox
- Gear Driven Side Gearbox
- Parking Stand For Storing
- 18 to 25 Horse Power
Specifications:
| Model: | TG-48-XB |
| PTO Speed Required | 540 |
| Tractor HP Range | Up to 25 HP |
| Approx. Weight | 489 lbs. |
| PERFORMANCE | |
| Working Width | 48″ |
| Max. Tilling Depth | 6.5″ |
| Rotor Shaft Speed (RPM) | 250@544 |
| Gearbox Protection | Slip Clutch |
| CONSTRUCTION | |
| Rotor Drive Type | Gear |
| No. of Flanges | 6 |
| No. of Tines per Flange | 6 |
| Hitch | Limited Cat I |
| Input Drive Line Category | ASAE Cat. 4 |
| Tine Type | L shaped |
| Tine Spacing | 7.5″ |
