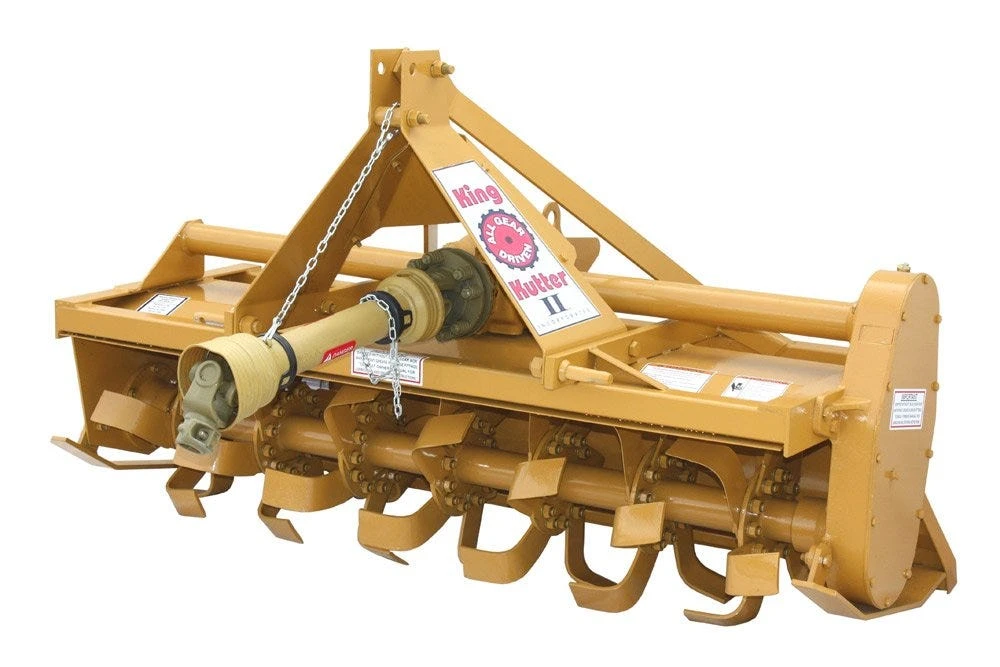

King Kutter 6′ Gear Driven Tiller, Yellow – TG-72-Y – Tillers

Product Description:

King Kutter’s 6′ GEAR DRIVEN ROTARY TILLER (TG-72) is designed to perform with its heavy duty gear drive and square tube frame. With 6 tines per flange, you get maximum soil mix for preparing planting beds, gardens, incorporating fertilizer, landscaping, or other jobs. This Category 1 tiller includes a PTO shaft with heavy duty slip clutch. Available in 4, 5, and 6 ft. models. The 4 ft. model is offset to eliminate tire tracks.

This model is designed for tractors in the 35-50 horse power range.

Product Features:

• Gear Drive
• Heavy-Duty Frame
• Adjustable Tailgate
• Slip Clutch Drive Line Standard
• Six Tines per Flange
• Number of Tines: 54

Specifications:

Model:	TG-72
PTO Speed Required	540
Tractor HP Range	35-50 HP
Approx. Weight	721 lbs.
PERFORMANCE
Working Width	72″
Max. Tilling Depth	8″
Rotor Shaft Speed (RPM)	210@540
Gearbox Protection	Slip Clutch
CONSTRUCTION
Rotor Drive Type	Gear
No. of Flanges	9
No. of Tines per Flange	6
Hitch	Cat I
Input Drive Line Category	ASAE Cat. 4
Tine Type	L shaped
Tine Spacing	7.5″
