King Kutter 7′ Gear Driven Tiller, Blue – TG-84-BK – Parts & Repair

Product Description:

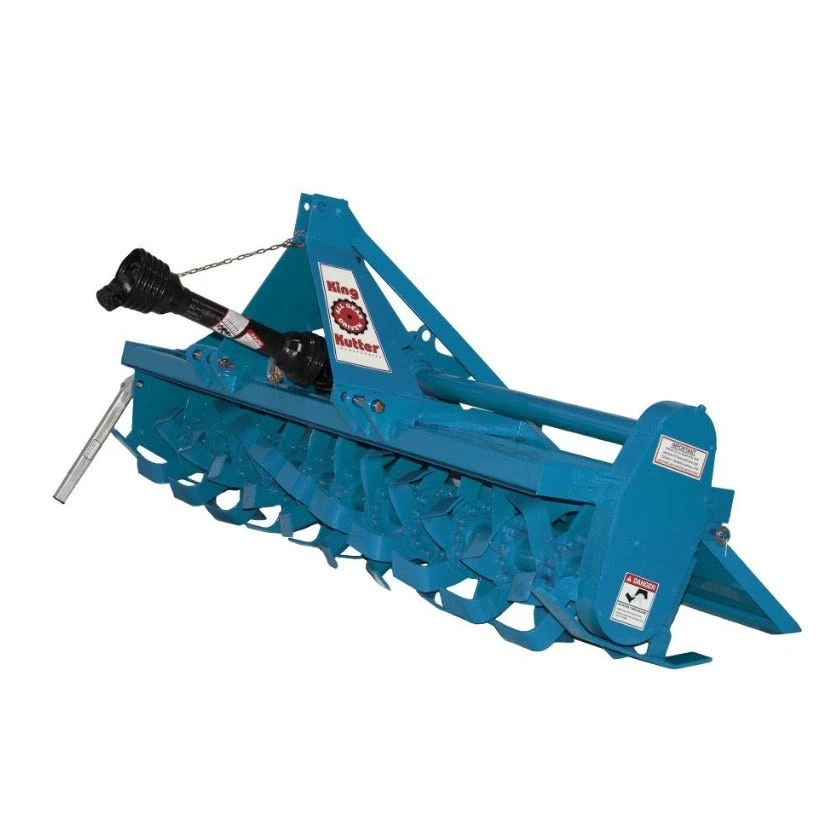

King Kutter’s 7′ GEAR DRIVEN ROTARY TILLER (TG-84);is designed to perform with its heavy duty gear drive and square tube frame. With 6 tines per flange, you get maximum soil mix for preparing planting beds, gardens, incorporating fertilizer, landscaping, or other jobs. This Category 1 tiller includes a PTO shaft with heavy duty slip clutch. Available in 4, 5, and 6 ft. models as well. The 4 ft. model is offset to eliminate tire tracks.

This model is perfect for larger operations and idea for use on tractors from 50-65 horse power.

Product Features:

• Gear Drive
• Heavy-Duty Frame
• Adjustable Tailgate
• Slip Clutch Drive Line Standard
• Six Tines per Flange
• Category 1 or Category 2
• Straddle Hitch

Specifications:

Model:	TG-84
PTO Speed Required	540
Tractor HP Range	50-65 HP
Approx. Weight	805 lbs.
PERFORMANCE
Working Width	84″
Max. Tilling Depth	8″
Rotor Shaft Speed (RPM)	210@540
Gearbox Protection	Slip Clutch
CONSTRUCTION
Rotor Drive Type	Gear
No. of Flanges	11
No. of Tines per Flange	6
Hitch	Cat I or Cat II
Input Drive Line Category	ASAE Cat. 4
Tine Type	L shaped
Tine Spacing	7.5″
